Lamborghini LM002: Massive Off-Roader Ignoring Aerodynamics with the Heart of a Supercar
From a failed military project, it became an opulent off-roader for sheikhs without a shred of Italian elegance.
Italian automaker Lamborghini still maintains the aura of a wild supercar manufacturer with a bull in its emblem. With the Miura model, it once stood at the birth of the mid-engine concept that dominates the supercar segment. Unfortunately, the company’s financial situation was often tense, and after the departure of Ferruccio Lamborghini, it frequently changed owners.

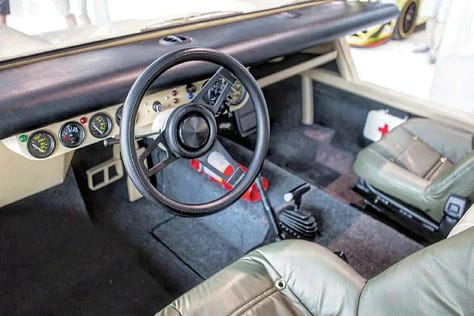

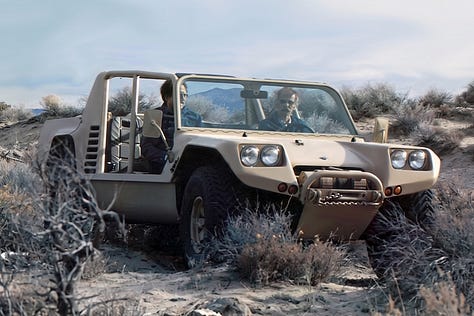

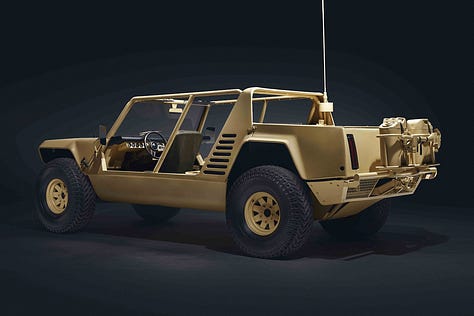

In the 1970s, Lamborghini decided to collaborate with Mobility Technology International to pursue an American military contract for a multipurpose off-road vehicle, whose production would mean financial security. A prototype called the Cheetah was created, which had very poor handling due to its rear-mounted engine, so the U.S. Army chose AM General and the future Humvee.
Under the leadership of the Mimran brothers, a decision was made to rework the unsuccessful military foundation into an opulent civilian off-roader for the wealthy to improve the brand’s image or heal the financial loss. While the engine was logically moved to the front, the interior was meant to be luxurious. In 1986, a massive, rugged off-roader with a bed, the Lamborghini LM002, saw the light of day, earning the nickname ‘Rambo Lambo’ for its appearance.
Chassis & Body

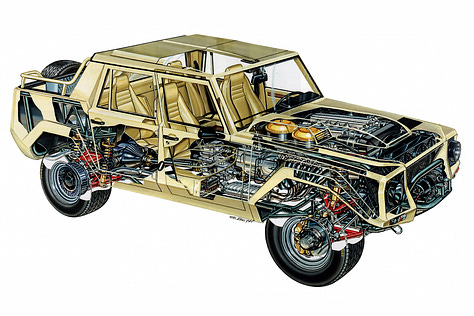

The vehicle’s construction itself still stemmed from the original military prototype, which was highly durable. The vehicle’s foundation was thus formed by a complicated tubular frame, which meant complex repairs. Both the engine and transmission intruded into the cabin in the interest of shorter overhangs. Body panels were made of aluminum and fiberglass, yet it remained an extremely heavy vehicle.
Performance & Driving

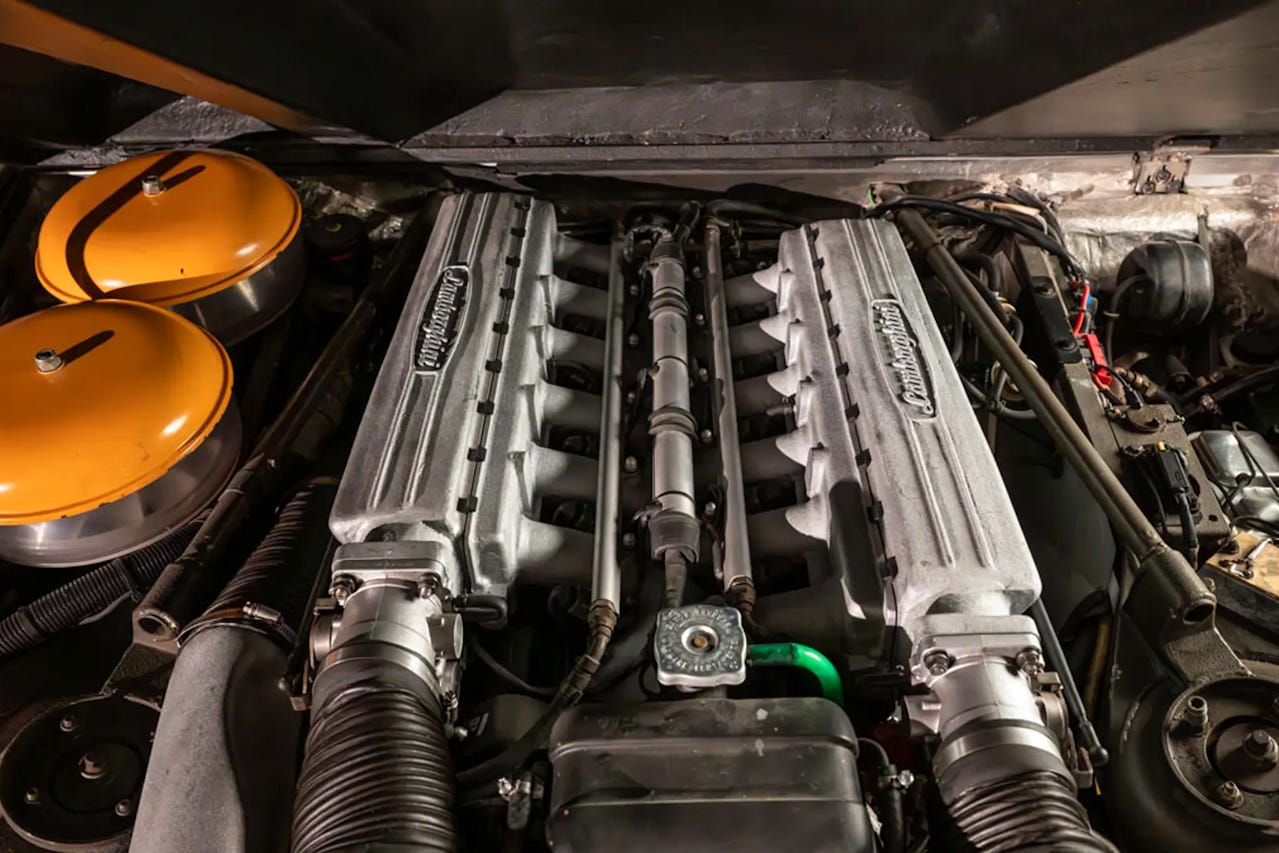

Under the front hood, unlike the Cheetah with its wheezy Chrysler unit, worked an exclusive V-12 taken directly from the Countach supercar. The engine revved eagerly, and the ride was accompanied by the unmistakable sound of an enraged Italian supercar. The LM002 could accelerate from zero to 62 mph in less than 8 seconds, a feat many sports cars could not achieve, let alone a gigantic off-roader. If that was not enough for customers, Lamborghini also offered the installation of a larger V-12, created primarily for use in speedboats.
Driving this giant off-roader presented a demanding task given the vehicle’s enormous weight. On the road, despite independent suspension, clumsiness dominated, and the car was difficult to coerce into cornering. Brakes did not quite know how to handle the weight and began to fade after a few harder pedal presses. High-profile off-road tires filtered out bumps perfectly, but a comfortable ride was hindered by the enormous noise penetrating inside.
Lamborghini Cheetah
Going off-road was all it took for the LM002 to reveal its undeniable qualities in tough terrain. Thanks to special tires and high power, it floated through dunes with unexpected ease. Almost no obstacle was insurmountable when the low-range gearing and purely mechanical differential locks were engaged.
Exterior & Styling

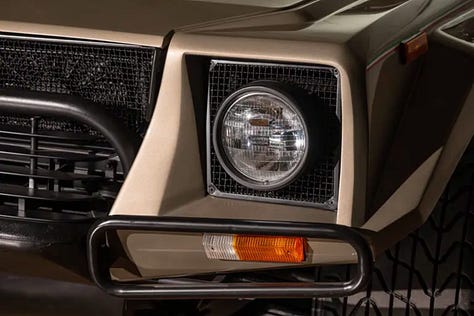

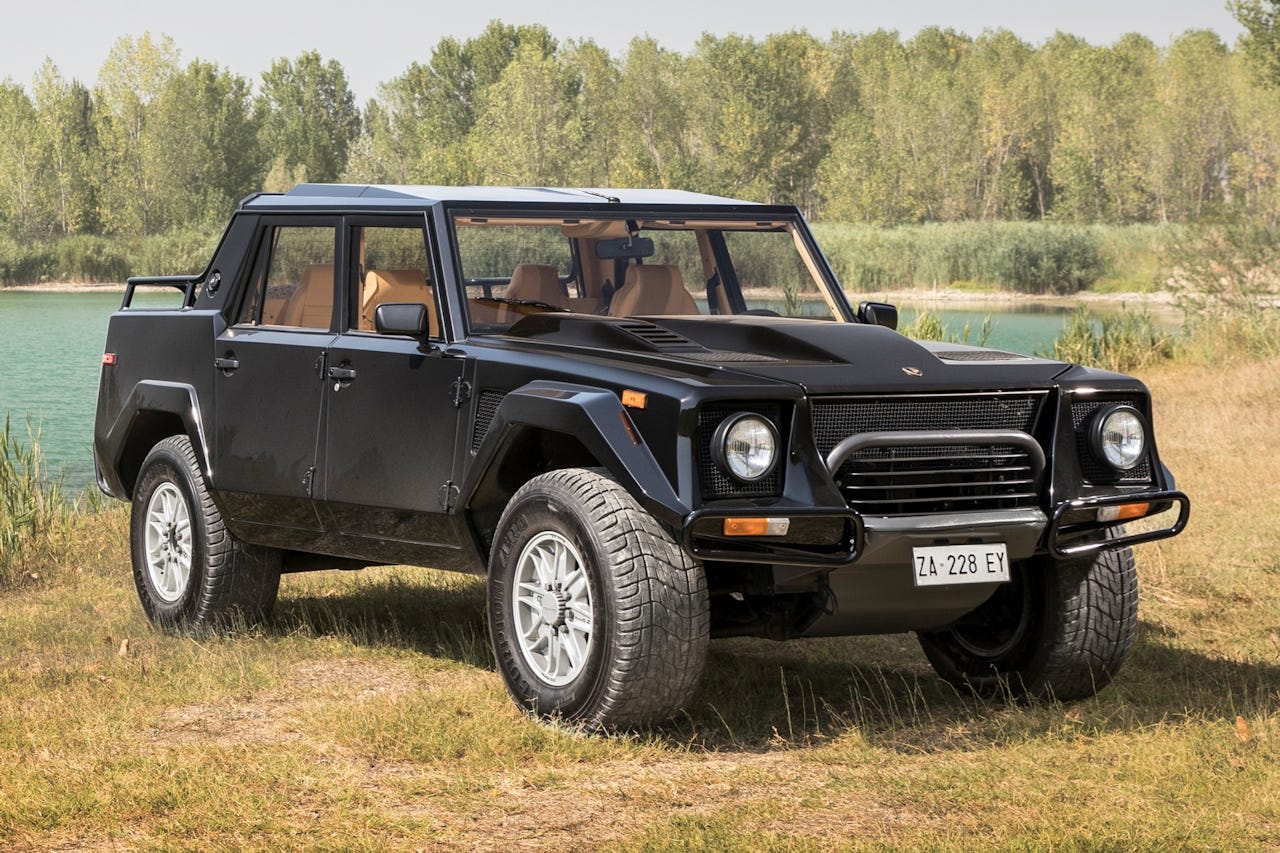

The exterior design of this mastodon was brutally purposeful, devoid of even a pinch of Italian elegance. Its appearance was defined by sharp edges and flat surfaces without any aerodynamic curvature. A rugged, nearly vertical front end featured a massive grille in its center to direct air to the large engine. Simple round headlights on the sides protruded from square grilles.
A sturdy brush guard, which simultaneously provided radiator protection, replaced a standard bumper. The engine’s dimensions and other components like carburetors housed underneath necessitated an unusually and asymmetrically sectioned hood. The windshield’s shape could not do without the use of three wipers.
From the profile, the tall build and overall massive body stood out most. Flat side panels gradually tapered at the bottom edge. Only the flared fenders over the wheels protruded, which were practically boxy with sharp edges as well. Given the size of this off-road pickup, the low side windows and extremely short bed gave a somewhat modest impression. The vehicle originally came equipped with special run-flat tires featuring beadlock protection, manufactured exclusively for the LM002.

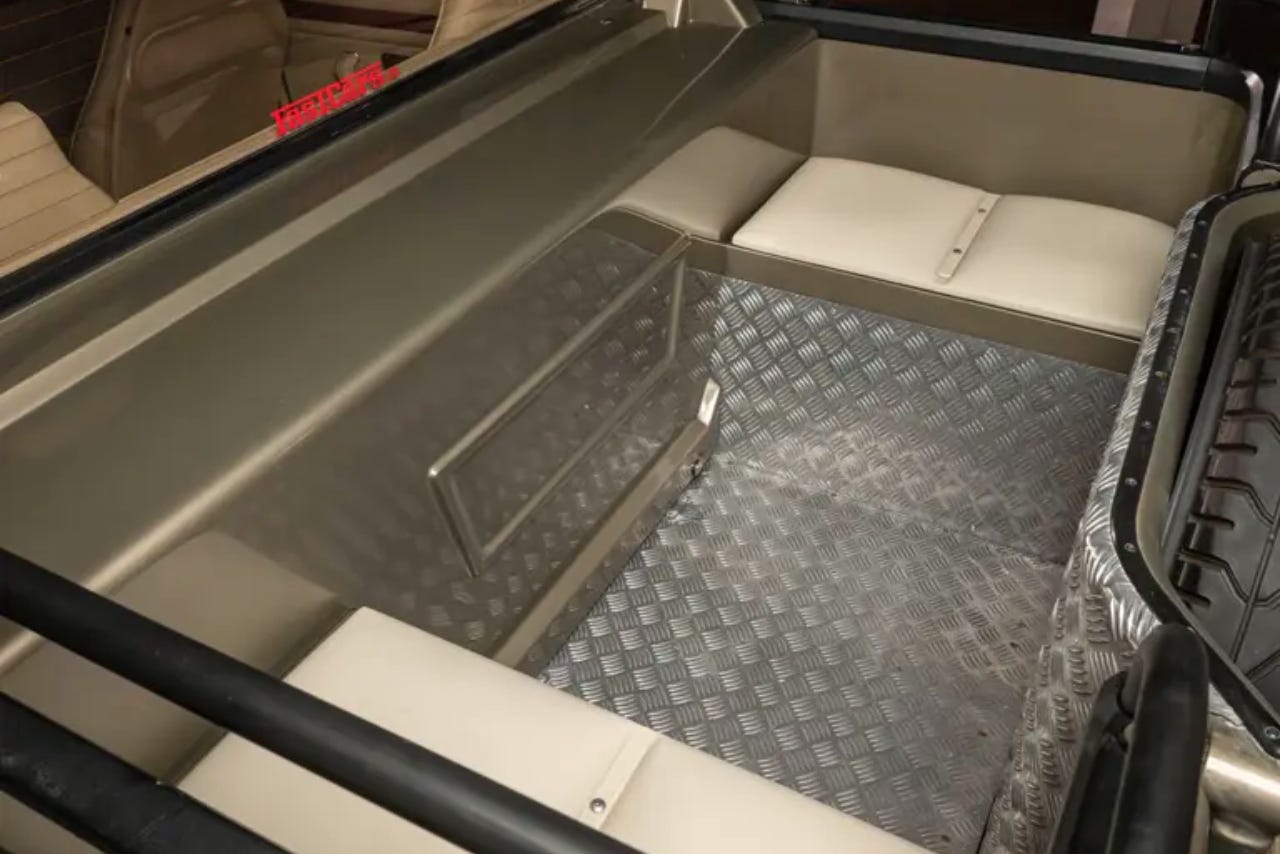

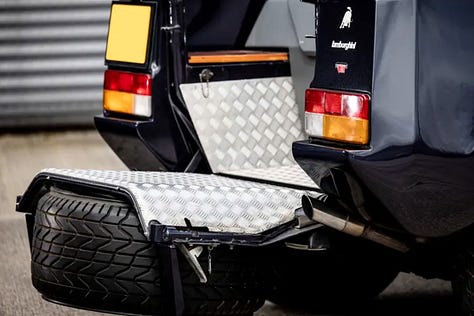

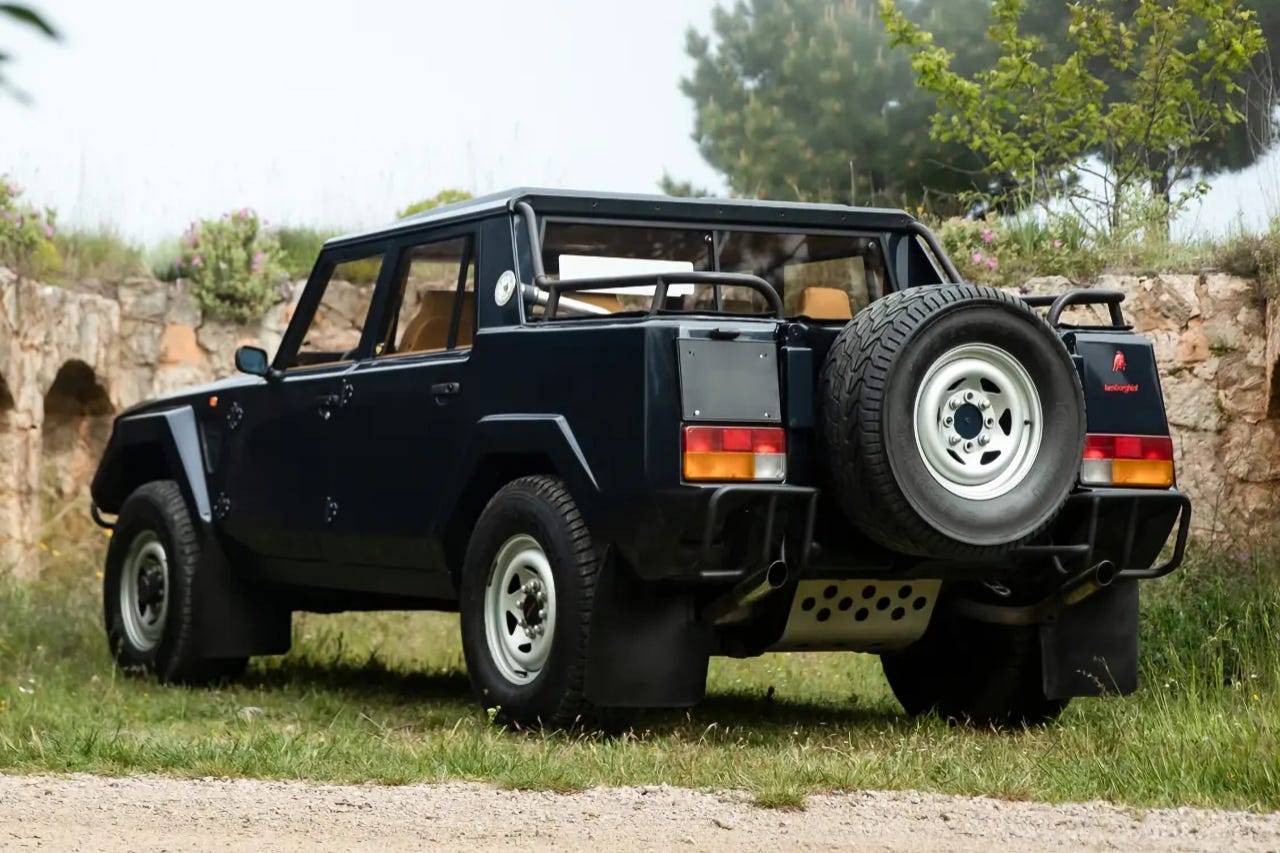

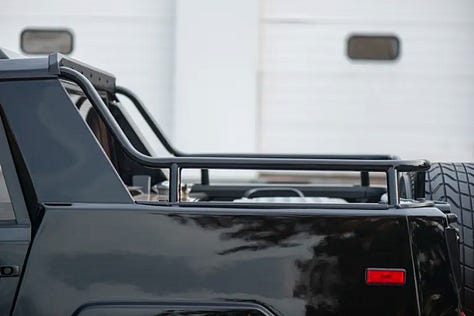

The rear consisted of a short and unusually shaped bed, which could be equipped with benches for a surcharge, such as for an oil sheikh’s bodyguards. A tubular bar on its upper edge complemented smaller brush guards at the bottom of the rear. A full-size spare tire in the center separated simple rectangular taillights on the sides. This was mounted on the tailgate, which folded down to form an improvised boarding ramp.
Interior & Equipment

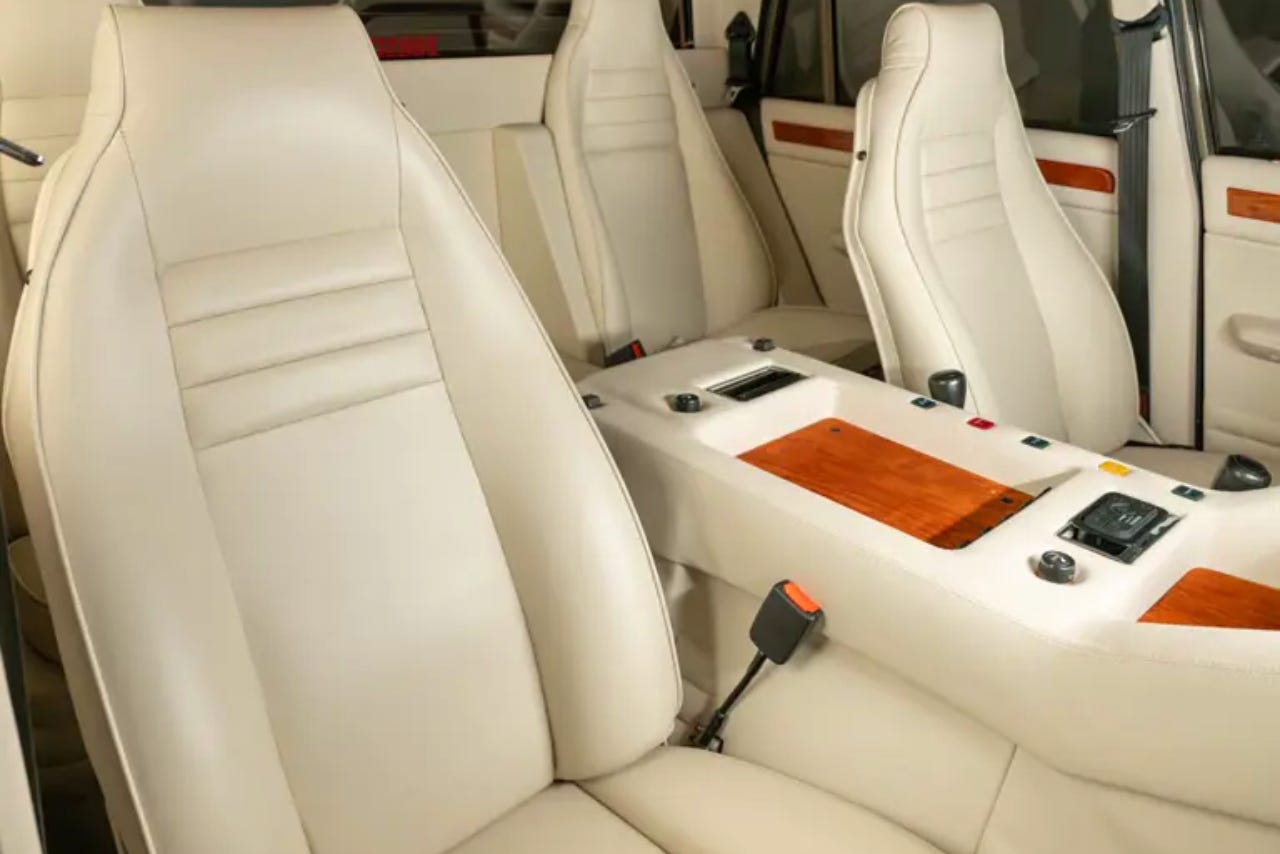

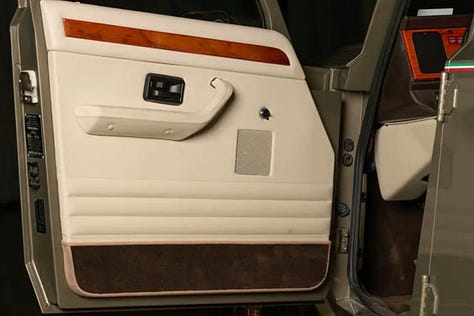

Unexpectedly, the cramped interior combined the shapes of a rugged off-roader with the most exquisite materials. Aside from four-wheel-drive control levers and Fiat group switchgear, fine leather and genuine wood trim formed almost all surfaces. The vertically oriented dashboard was full of right angles, while switch placement appeared highly unorganized. For instance, the car radio panel found its place on the headliner.

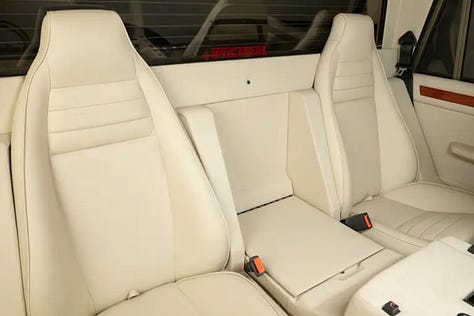

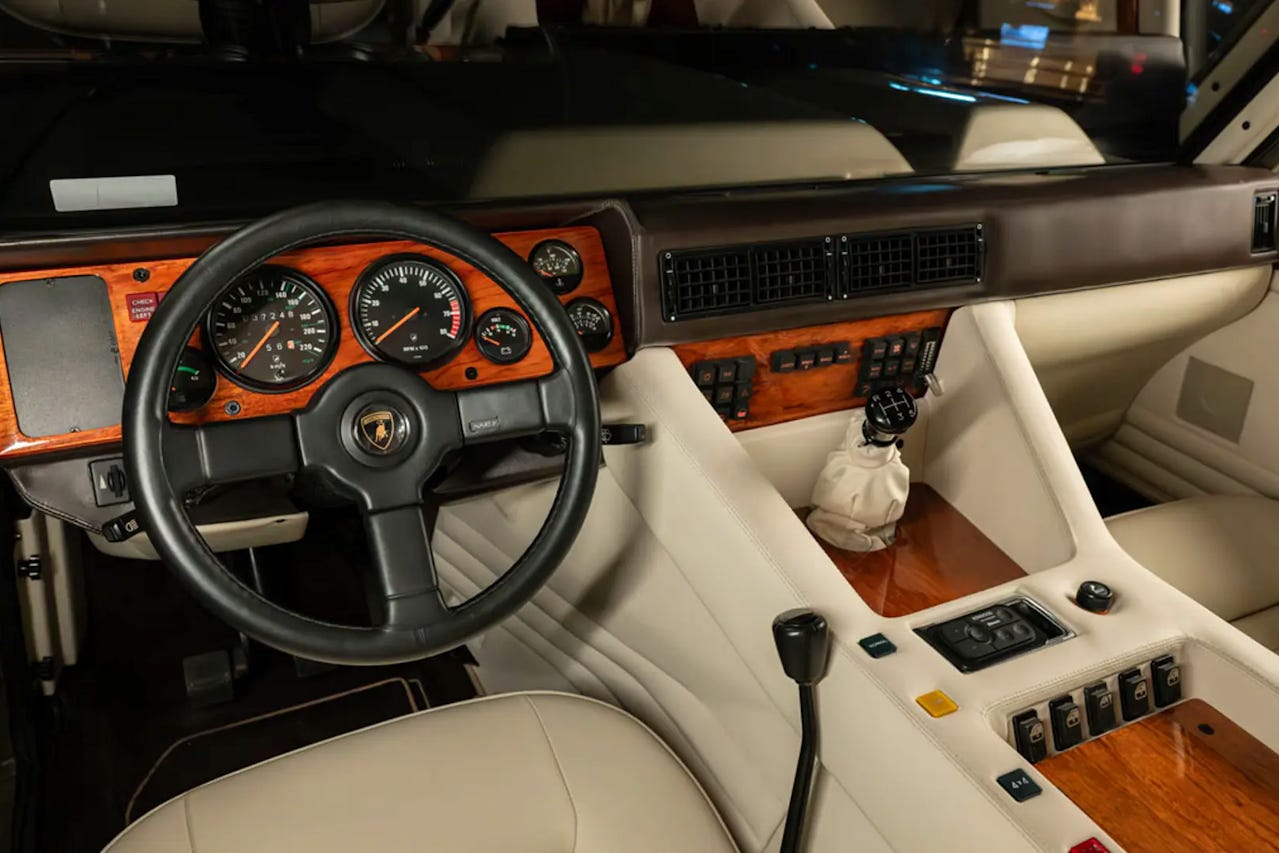

Behind a relatively flat-mounted steering wheel from the Countach were gauges also sourced from this supercar, set in a wood panel. Leather seats with integrated headrests were genuinely comfortable, but better lateral support would have been needed off-road. A massive center console separated the driver and passenger, housing drivetrain components inside. It stretched through the entire interior, meaning there were only two seats in the back as well. Small, low windows did not help feelings of claustrophobia.
LM002 Wagon

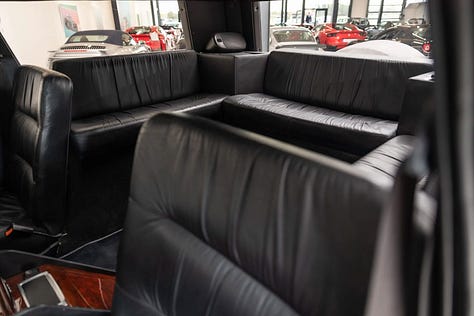

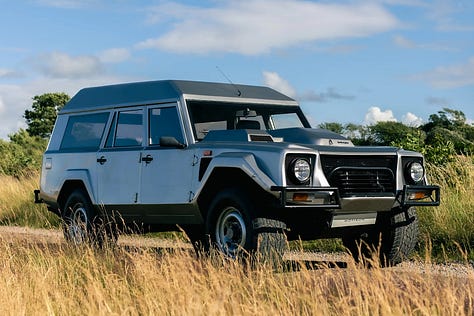

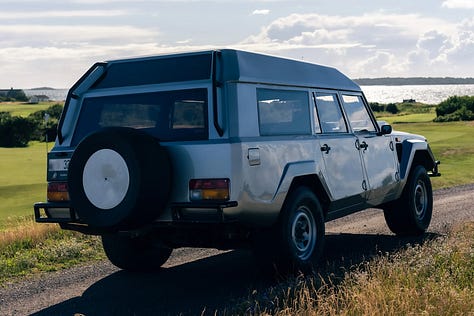

The Sultan of Brunei had several Lamborghini LM002s modified by coachbuilder Salvatore Diomante, transforming them into enclosed SUVs. An extended cabin thus replaced the bed, housing a small lounge inside. In the interest of greater interior space, the roof was also significantly raised. Inside, besides a premium audio system, a television was placed on the center console.
Market Reception & Verdict
From a sales perspective, it was a fringe model, even by Lamborghini standards, but as PR, the LM002 fulfilled its mission excellently and helped at least partially offset the financial loss from the Cheetah’s development. It was a unique combination of a characterful V-12 with the unmistakable sound of a supercar and superb capabilities in tough terrain. Inside, it excelled with a selection of high-quality materials. But by far, it drew the most attention with its unmistakable rugged appearance and road presence, which many people value.
Lamborghini LM002 Wagon
The unique engine under the hood simultaneously meant truly high fuel consumption. Likewise, maintenance costs were considerable, and many parts, including the specific tires, were practically unavailable. Operating this off-road pickup required genuine strength, and the insufficient braking performance had to be kept in mind.
Interior space was scarce given the vehicle’s dimensions, and engine temperatures necessitated the installation of a truly powerful air conditioning system. By 1993, only 328 units of this behemoth were built, and customers back then included both Hollywood stars and oil magnates from around the world.
Successors & Legacy
Out of a failed military contract grew an absolute status symbol that played to the egos of the truly powerful. It proved that even during a crisis, Lamborghini did not dial back its passion. Even today, it commands very high prices at auction, but owners primarily struggle with a shortage of spare parts, although Pirelli recently introduced a new edition of the special Scorpion tires.
The LM002 paved the way for all modern super SUVs with massive egos, which boost the budgets of the most exclusive automakers. Even today’s Lamborghini has a representative of this segment in its lineup with the Urus model, which can be considered a very distant successor. With it, rugged looks and fast road driving lead the way, whereas the LM002 was a true-blue off-roader with a full-fat engine under the hood. However, the ego of the owners is more or less similar.
Even though the LM002 model helped improve the budget of Lamborghini at the time, the company was still near bankruptcy. The turning point was its integration into the Volkswagen Group, which was willing to invest in it. Lamborghini still managed to retain its main attributes, but added to them was German precision, making it a major player in this segment. The Urus secures sufficient finances so that the V-12 Revuelto supercar can remain in the lineup.
In conclusion, a comparison presents itself with the Humvee by AM General, which won the military contract that Lamborghini also sought. They share a rugged appearance, large dimensions and a wide center console, but otherwise, they differ diametrically.
Where the Humvee was utilitarian, the LM002 was full of leather and genuine wood. Originally pitted against each other were a wheezy V-8 and a unique V-12 from a supercar. The only area where the Humvee leads is the production volume of over 200,000 units, which, in the case of the Cheetah, would have meant an enormous boost for Lamborghini.
Basic Specifications
Years of production: 1986–1993
Country of origin: Italy
Design: Giulio Alfieri / Lamborghini Design Studio
Engine: Naturally aspirated 5.2–7.2L V-12 (Gasoline)
Layout: Front-engine, Four-Wheel Drive
Transmission: 5-speed manual
Power: 450–~600 hp (331–447 kW)
Torque: 368–~516 lb-ft (500–700 Nm)
Top speed: 118–130 mph (190–210 km/h)
Acceleration 0–60 mph (0–100 km/h): 7.7–8.2 s (7.8–8.5 s)
Combined fuel consumption (claimed): 7.8–9.4 mpg (25.0–30.0 L/100 km)
Dimensions (LxWxH): 192.9 x 78.7 x 72.8 in (4900 x 2000 x 1850 mm)
Wheelbase: 116.1 in (2950 mm)
Ground clearance: 11.8 in (300 mm)
Curb weight: 5952–6173 lbs (2700–2800 kg)
Should Lamborghini once again introduce a rugged off-roader for the wealthiest, or is the Urus fulfilling its task excellently while not requiring high investments?
* Some visuals may contain minor AI-generated edits.
Would you like to see more remarkable and bizarre Italian off-roaders showcased? I would greatly appreciate your feedback and thank you in advance for pointing out any mistakes or inaccuracies.
Sources: Lamborghini, Bring a Trailer, RM Sotheby’s, Lamborghini Registry, Car and Driver, Motor Trend Classic, Pirelli Heritage, Jalopnik, WheelsAge.org
